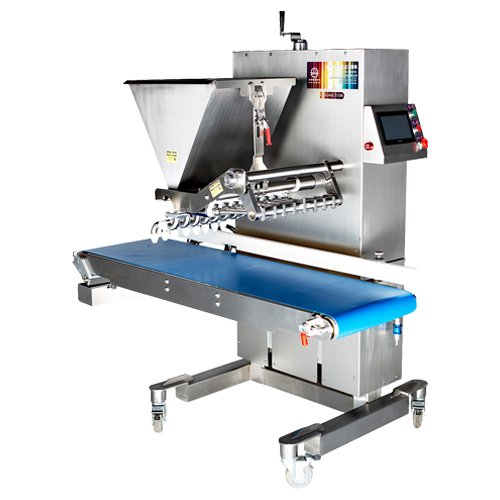

Cupcake and Liquid Batter Depositing – MERAKI – GCG-8ACF150
Brand: MERAKI
CHINA
Features:
Designed to deposit sponge cake and cupcakes in uniform sizes and quantities.
Suitable for accurately depositing liquids and semi-liquid batters by weight, including cupcakes, English cake, muffins, sponge cake, and various liquids.
Production Capacity: 10–20 cycles/minute, depending on the product and size.
When dispensing liquids, a drip-prevention accessory is required (optional accessory).
Hopper Capacity: Approximately 35 liters.
Filling Range: 10–150 ml.
Filling Accuracy: ±1 ml.
Control System: Mitsubishi PLC from Japan.
Equipped with a Weintek touchscreen control panel from Taiwan.
Volume Adjustment Motor: Panasonic, Japan.
Tray Photo Sensor: Panasonic, Japan.
Equipped with a servo-driven roller conveyor system.
Features a rotary valve operated by a pneumatic actuator.
The working platform moves vertically using a Panasonic servo cylinder.
Fully constructed from food-grade AISI 304 stainless steel.
All product-contact parts are made of SS316 stainless steel and PTFE.
No skilled operator is required to operate the machine.
